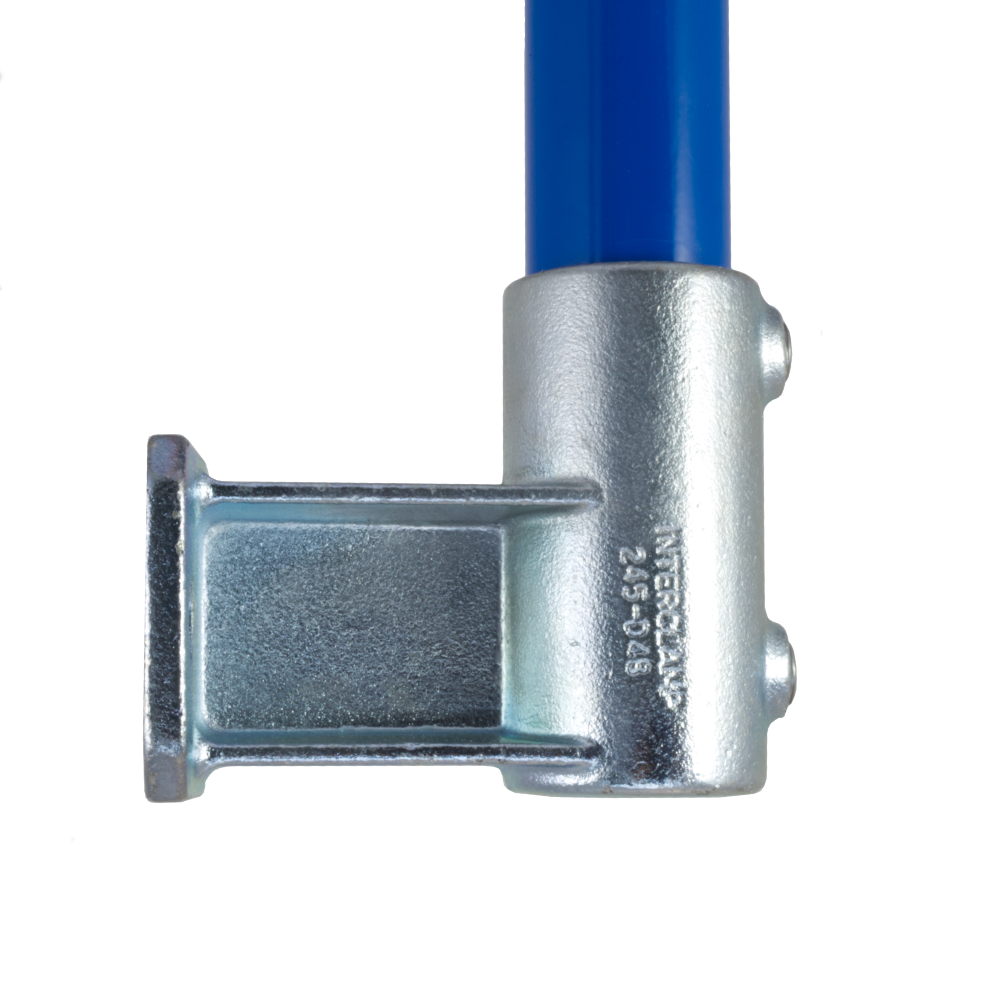

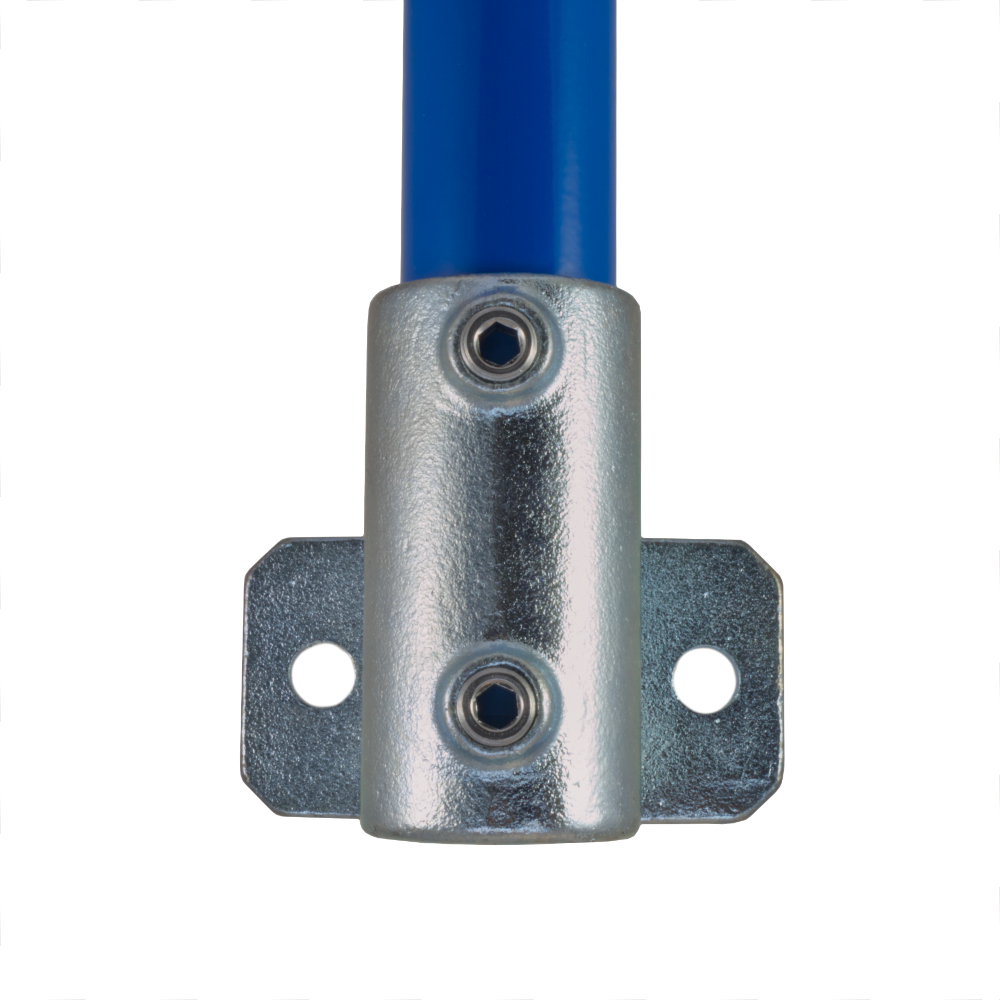

245 - Heavy Duty Side Support (Horizontal Base)
Designed to be interchangeable with traditional welded ball standard bases, this fitting has an extended offset when compared with type 145. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.
In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost.
Dane i wymiary produktu
| Rozmiar | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | Waga (kg) | Box Qty* | Part No |
| D48 | 102 | 145 | 119 | 75 | 110 | 2.00 | 8 | 245-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
