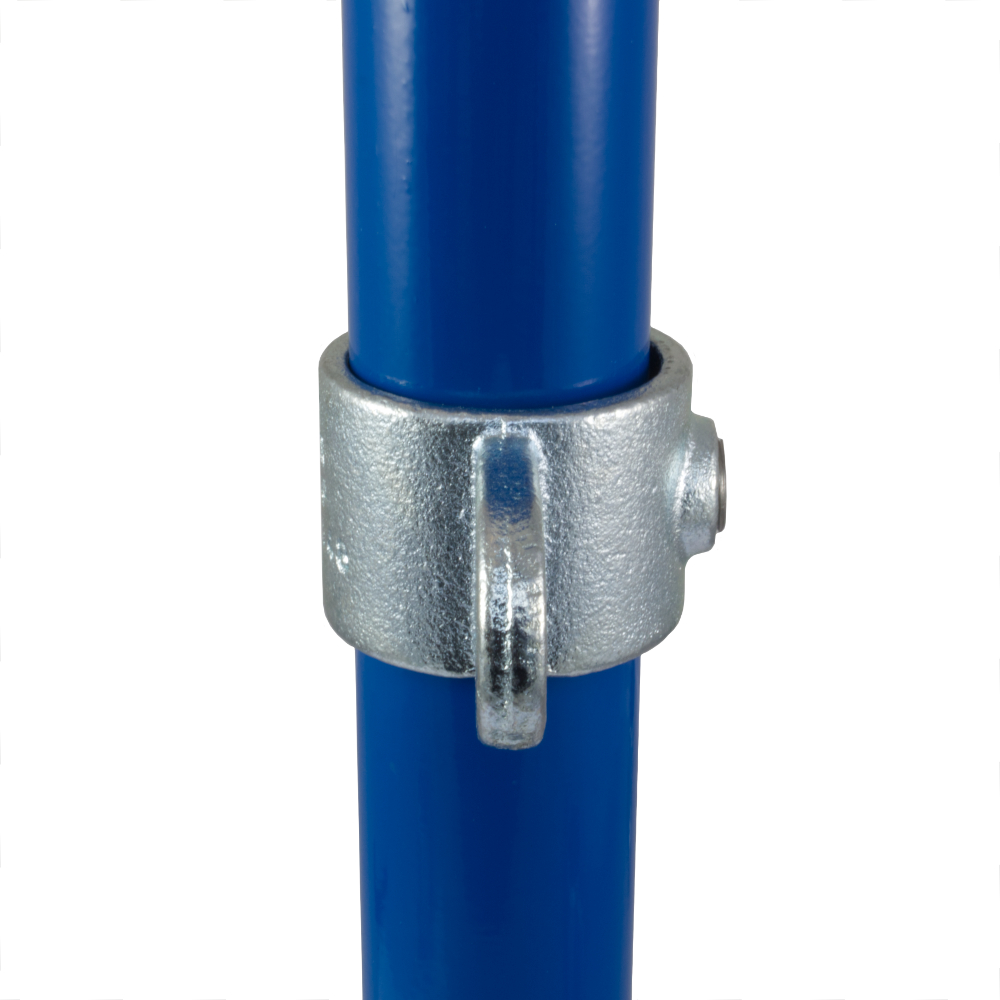

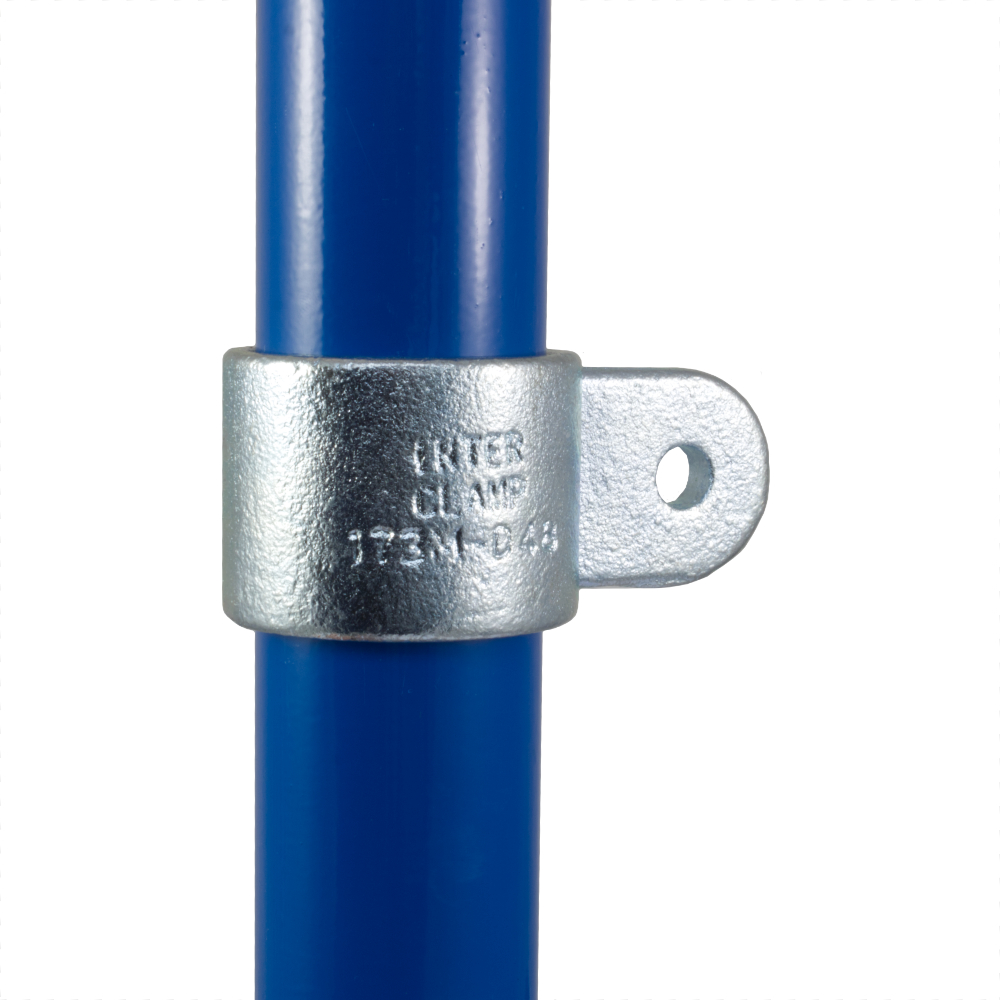

173M - Single Swivel Combination Male Part
Single lugged fitting. Can be supplied pre-assembled to type 173F to form type 173. Dependent on load requirements, this fitting may sometimes be used to fix flat sheets to tubes. The tube cannot be joined within the fitting.
Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.
Dane i wymiary produktu
| Rozmiar | b (mm) | Waga (kg) | Box Qty* | Part No |
| A27 | 40 | 0.22 | 180 | 173M-A27 |
| B34 | 43.5 | 0.26 | 150 | 173M-B34 |
| C42 | 48 | 0.33 | 105 | 173M-C42 |
| D48 | 53 | 0.36 | 84 | 173M-D48 |
| E60 | 60 | 0.51 | 42 | 173M-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
