158 - Center Cross

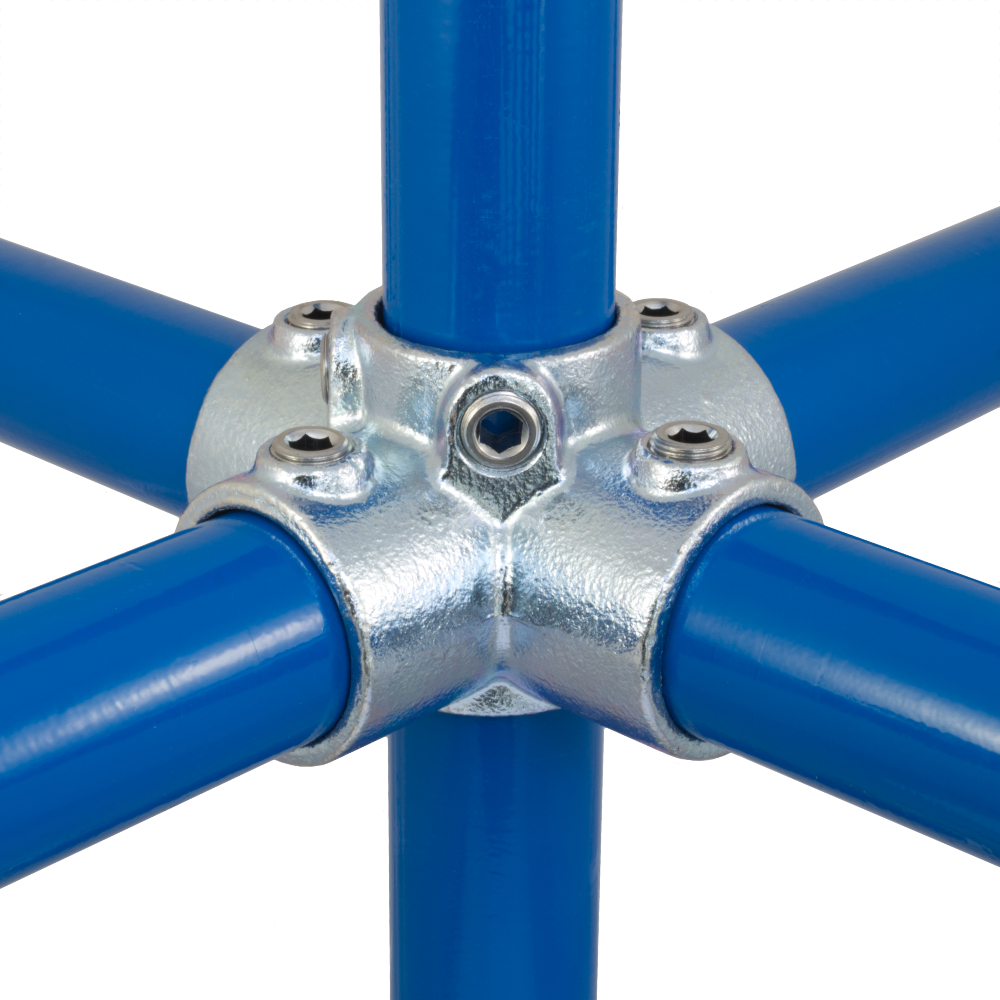

Designed to form a 90° joint between an upright which passes through the fitting and four other tubes. Usually used in the middle of larger structures such as self-contained play areas. The through tube (vertical in photo) cannot be joined within the fitting.
Dane i wymiary produktu
| Rozmiar | a (mm) | Waga (kg) | Box Qty* | Part No |
| A27 | 41 | 0.45 | 56 | 158-A27 |
| B34 | 46 | 0.61 | 30 | 158-B34 |
| C42 | 60 | 1.02 | 20 | 158-C42 |
| D48 | 68 | 1.27 | 11 | 158-D48 |
| E60 | 84 | 2.04 | 6 | 158-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
