155 - Slope Long Tee (0°-11°)

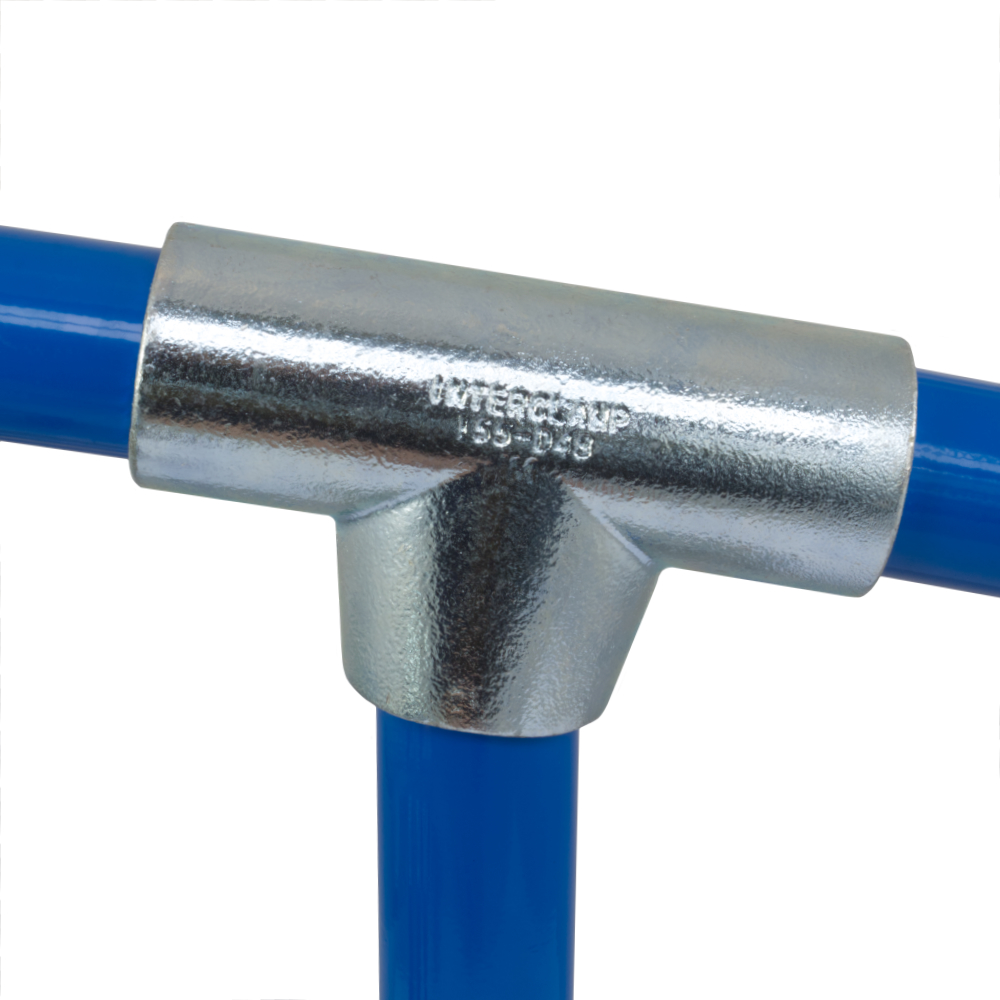

Adjustable for slopes from 0° to 11°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp can be used where through tube (sloping in photo) has to be joined within the fitting. Type 153 may often be used as an alternative.
Please also see our Interclamp Assist range of flush fittings to help compliance with the Disability Discrimination Act (DDA) and the Building Regulations Part M:2004.
Dane i wymiary produktu
| Rozmiar | a (mm) | b (mm) | Waga (kg) | Box Qty* | Part No |
| B34 | 46 | 104 | 0.54 | 40 | 155-B34 |
| C42 | 60 | 145 | 0.95 | 25 | 155-C42 |
| D48 | 68 | 168 | 1.19 | 18 | 155-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
