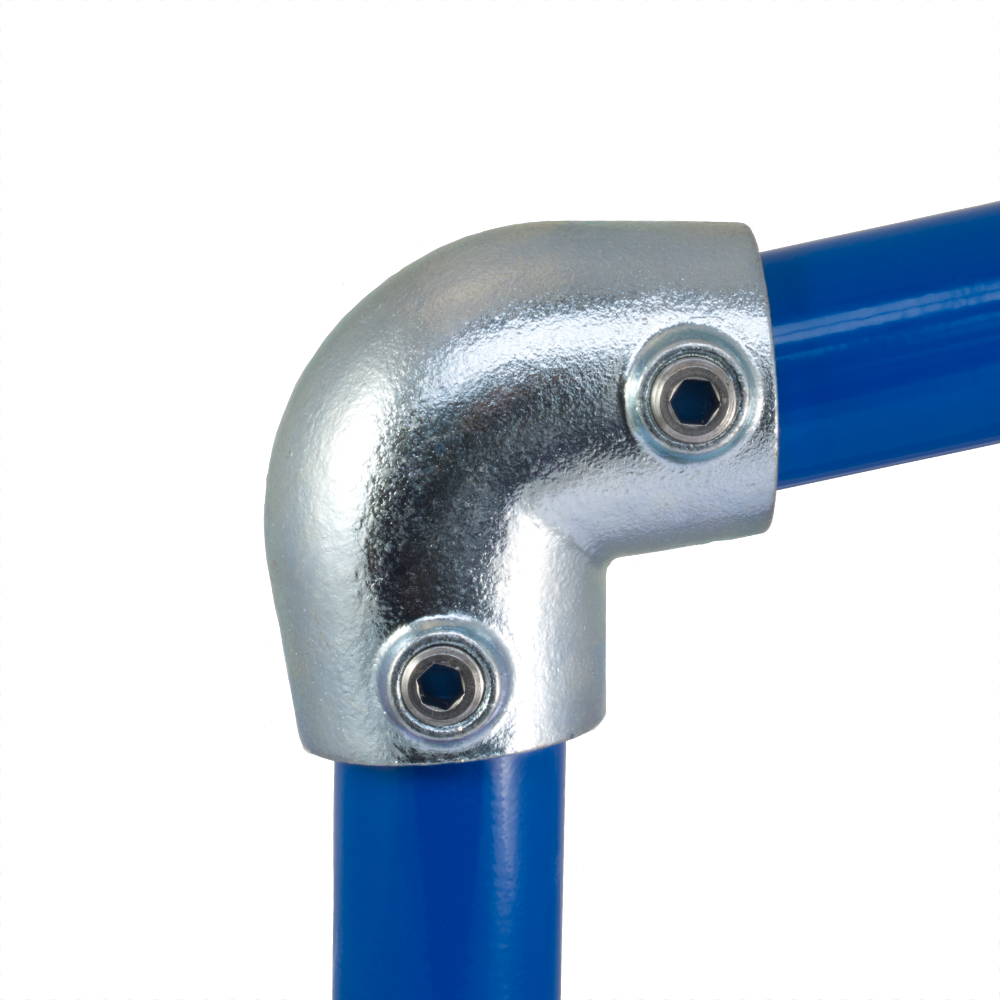

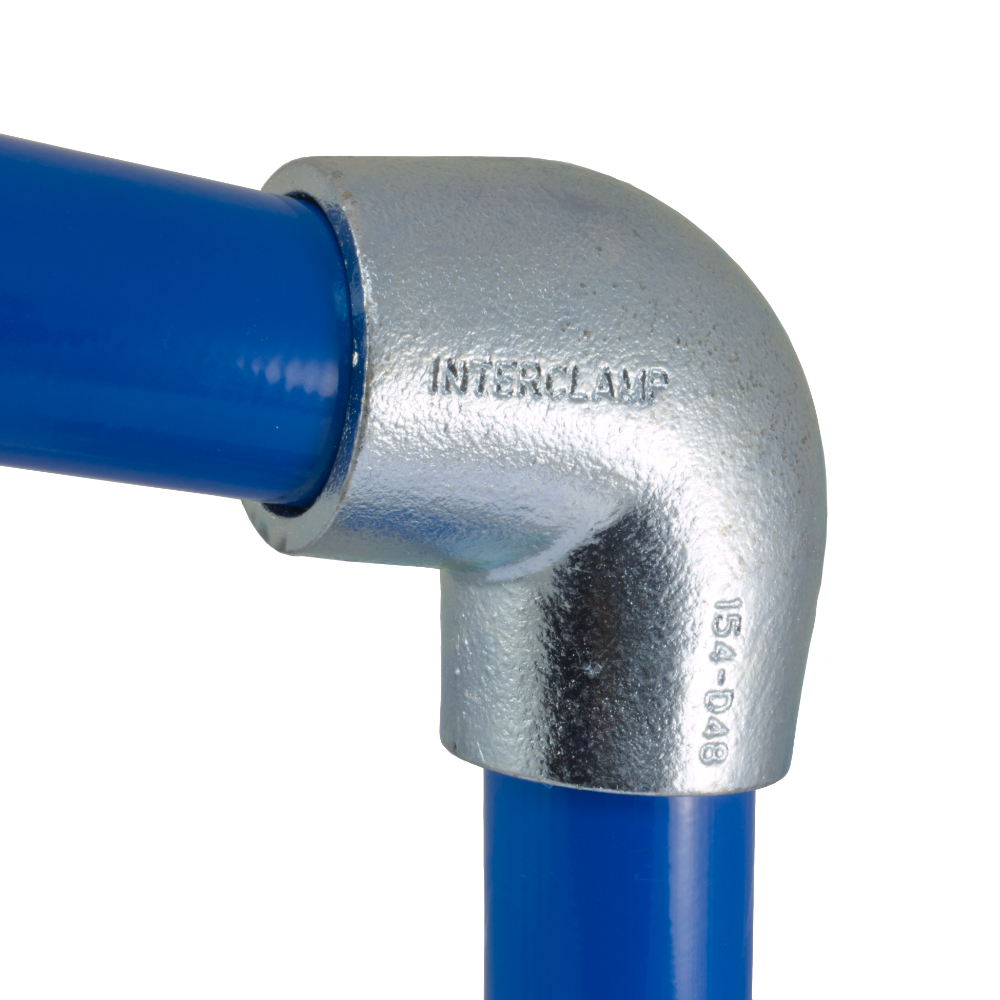

154 - Slope Elbow (0° - 11°)

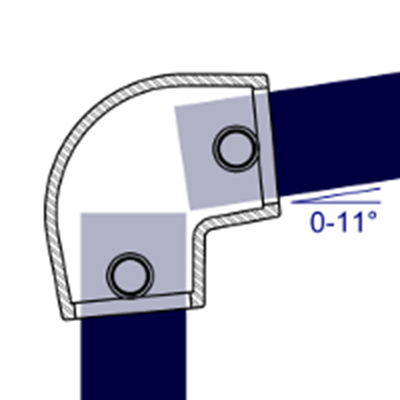

Angle joint adjustable for slopes from 0° to 11°, often used where top rail meets end upright on sloping sites. This fitting can be used at either the bottom or top of an incline. Normally used in conjunction with the 153 fitting.
Please also see our Interclamp Assist range of flush fittings to help compliance with the Disability Discrimination Act (DDA) and the Building Regulations Part M:2004.

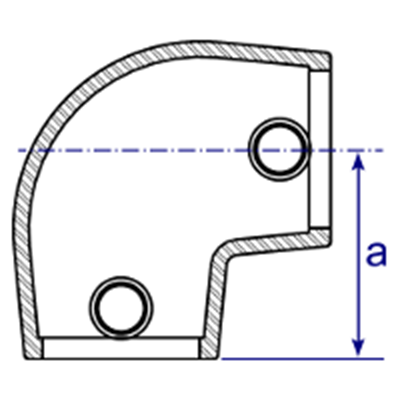

Dane i wymiary produktu
| Rozmiar | a (mm) | Waga (kg) | Box Qty* | Part No |
| B34 | 46 | 0.43 | 72 | 154-B34 |
| C42 | 60 | 0.65 | 35 | 154-C42 |
| D48 | 68 | 0.84 | 26 | 154-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
