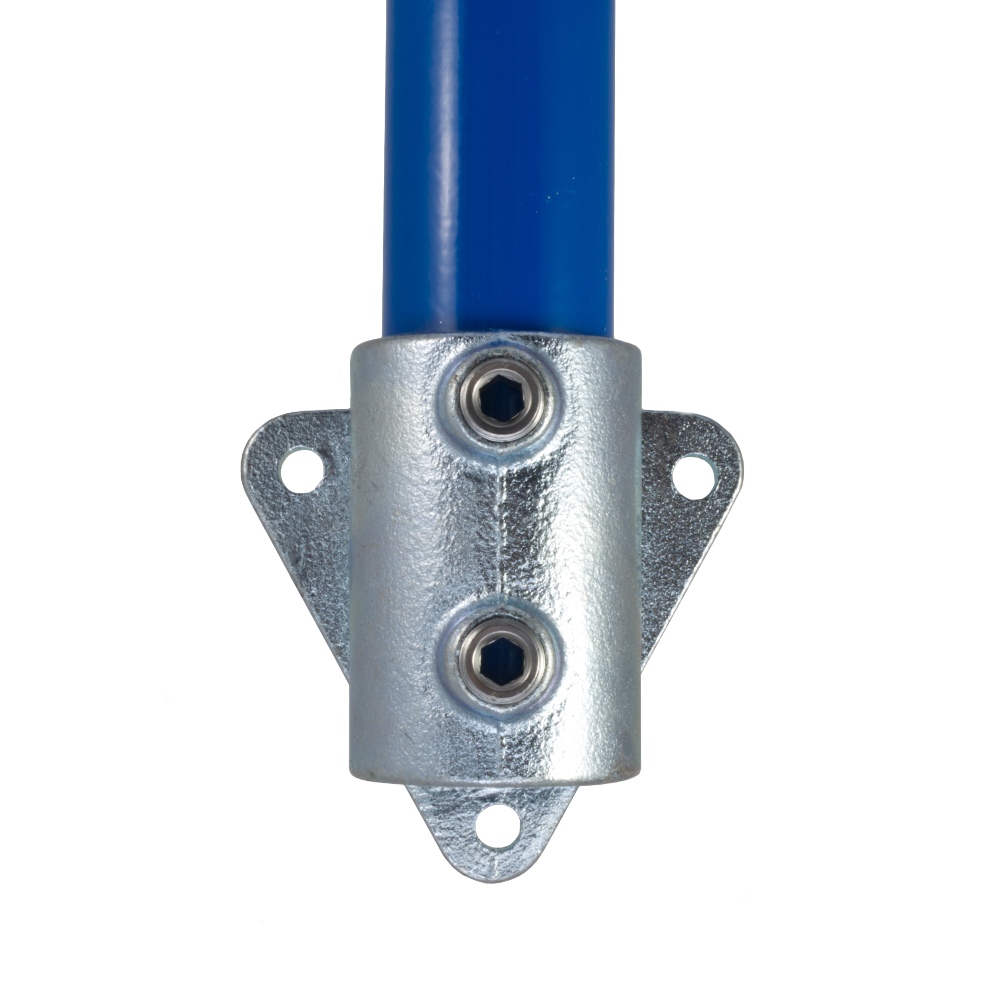

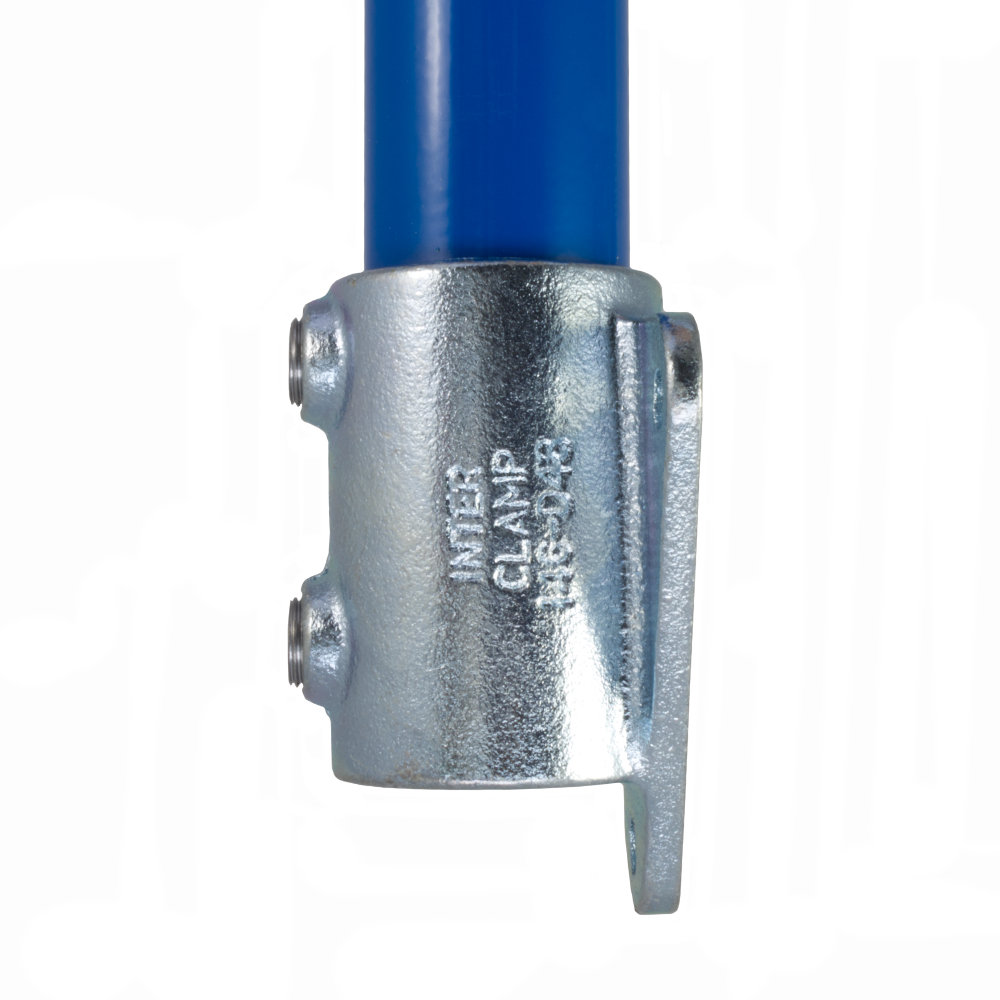

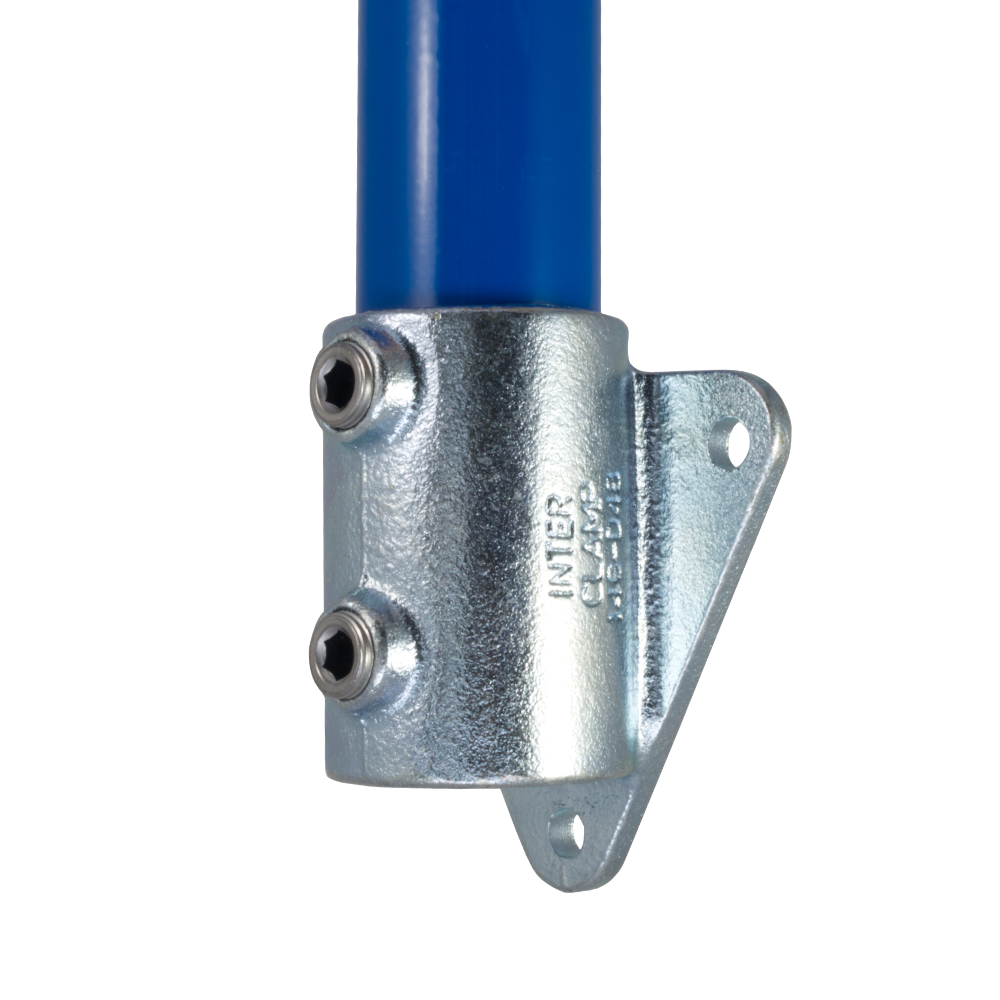

146 - Side Palm
A palm-type fitting, often used to attach guardrail uprights to walls, staircases and ramps. In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost (with loss of use of bottom bolt hole).
Dane i wymiary produktu
| Rozmiar | b (mm) | c (mm) | Hole Dia (mm) | Waga (kg) | Box Qty* | Part No |
| B34 | 68 | 63 | 10 | 0.58 | 50 | 146-B34 |
| C42 | 82 | 71 | 10 | 0.76 | 35 | 146-C42 |
| D48 | 86 | 79 | 10 | 0.84 | 28 | 146-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
